Johnson Conversion Kit for Electric Toilet - 12/24V

The Silent Electric Conversion series can be used to convert the Manual SPX Johnson Marine Toilet, as well as virtually any other model marine toilet using the “standard” bowl configuration with a 95,3mm (3-3/4") diameter bolt circle, 4 hole pattern in the base.

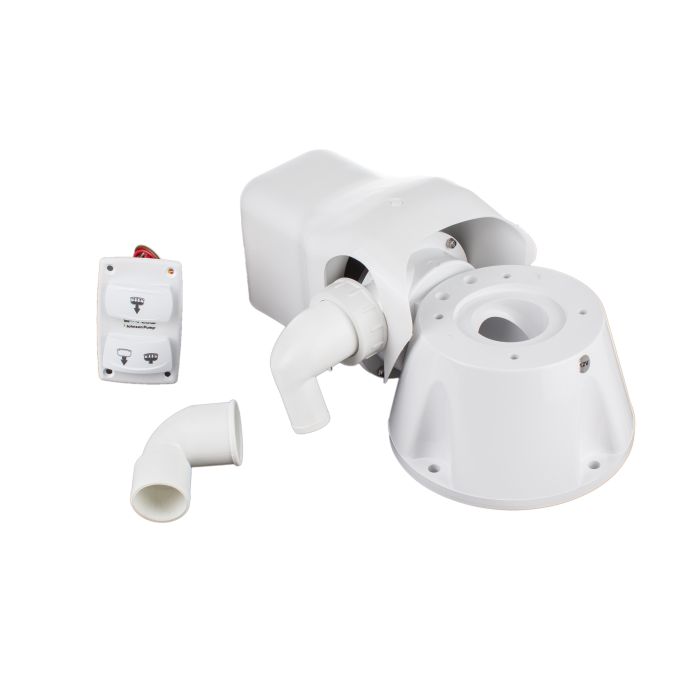

This conversion kit includes the complete motorized base assembly, bowl gasket, four bolts and washers for bowl, 25mm (1") and 38mm (1-1/2") discharge port adaptor, and control switch.

For separate external flush system with flush pump or by existing centralised water system using a solenoid valve (not included)

Silent flush and discharge operation

Included control panel for rinse and discharge pump

Water consumption 2-2,5 L per flush

Multi-angle outlet for various installations

Connection: Discharge hose 25mm (1") or 38mm (1-1/2")

High capacity discharge pump, discharge height 3 meters (9ft)

Fuse size 25A

Dimensions: Height 12,5cm / width 22,5cm / length 32,1cm
